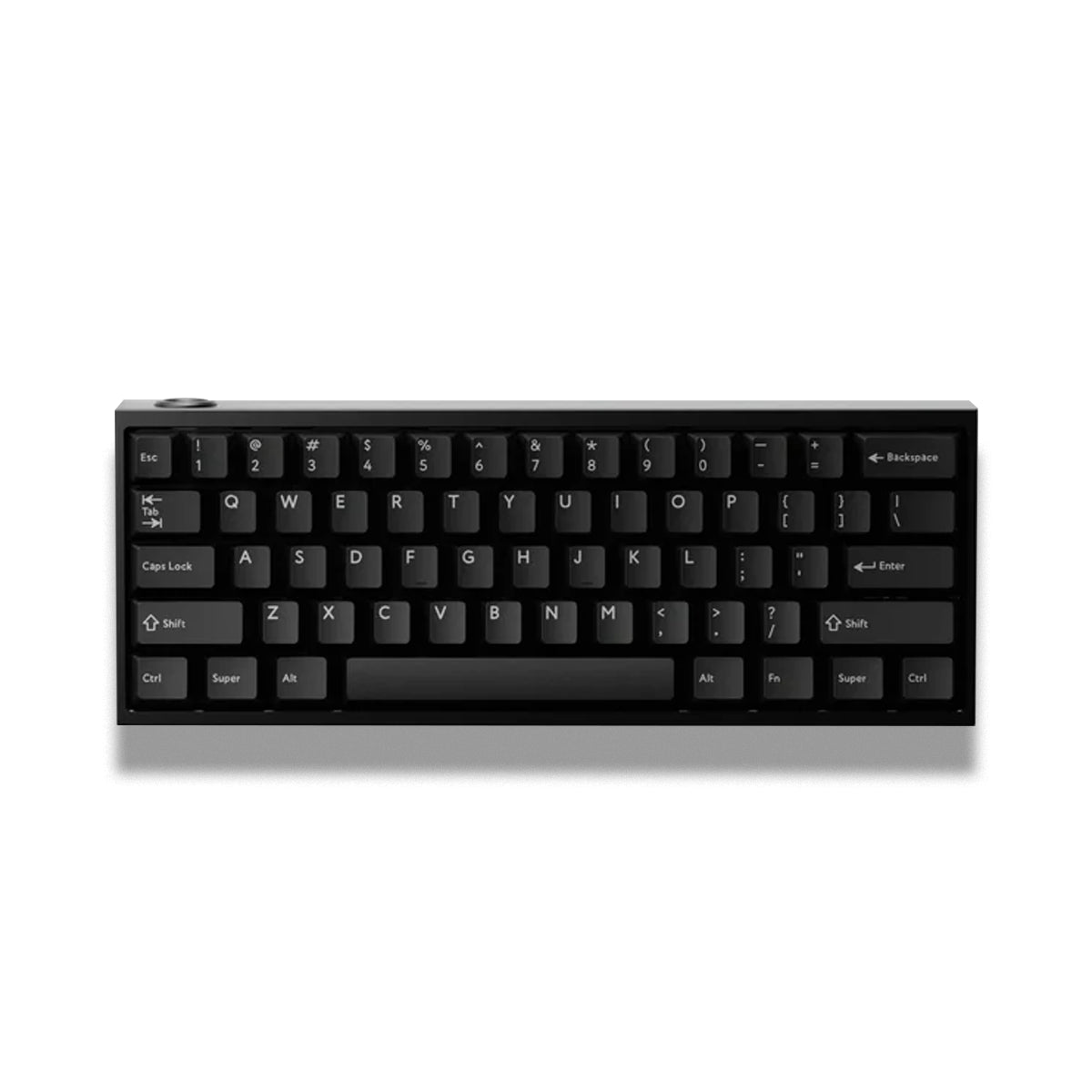

KBDfans Tofu60 Redux V2 Keyboard Case

Pre-order
$65.00
Color

This item is a preorder!

Estimated Ship Date: Late August 2026

Shipping Information

All items are shipped from our facility in Southern California, US. No
additional custom fees or tariffs will be charged once checked out.

KBDfans Tofu60 Redux V2 Keyboard is a more refined and customizable case to the V1 Redux. It removes the fixed stand-offs and now offers detachable stand-offs with additional mounting support for custom silicone ring (CSR) mounting. Compatible with GH60 layout PCBs for MX builds as well as HE options such as the Wooting60 HE V1/V2, Venom60, Rakke, etc.

Estimated Ship Date: Late August 2026

KBDfans Tofu60 Redux V2 Keyboard Case Features:

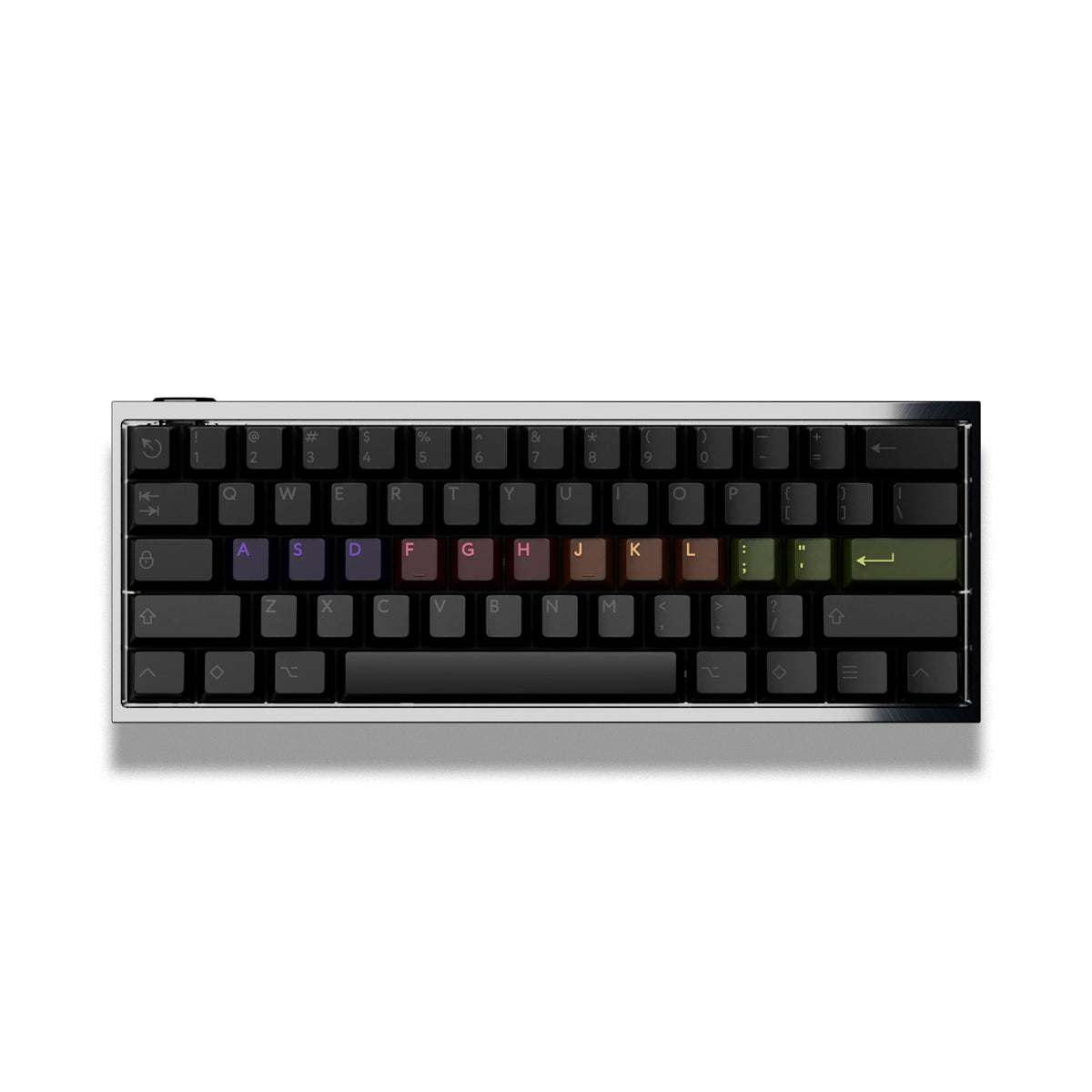

  • 60% Layout
  • Mounting Style: Tray, OG, O-ring
    • Tray Mount uses detachable standoffs & mini gaskets
    • OG uses the custom silicone ring & mini gaskets. Allows for a friction fit mount that is compatible with non-O-ring style PCB, an alternative to tray-mount.
    • O-ring uses the custom silicone ring & mid gaskets. Allows for a friction fit mount that doesn't contact the PCB, mid gaskets sit below the custom silicone ring.

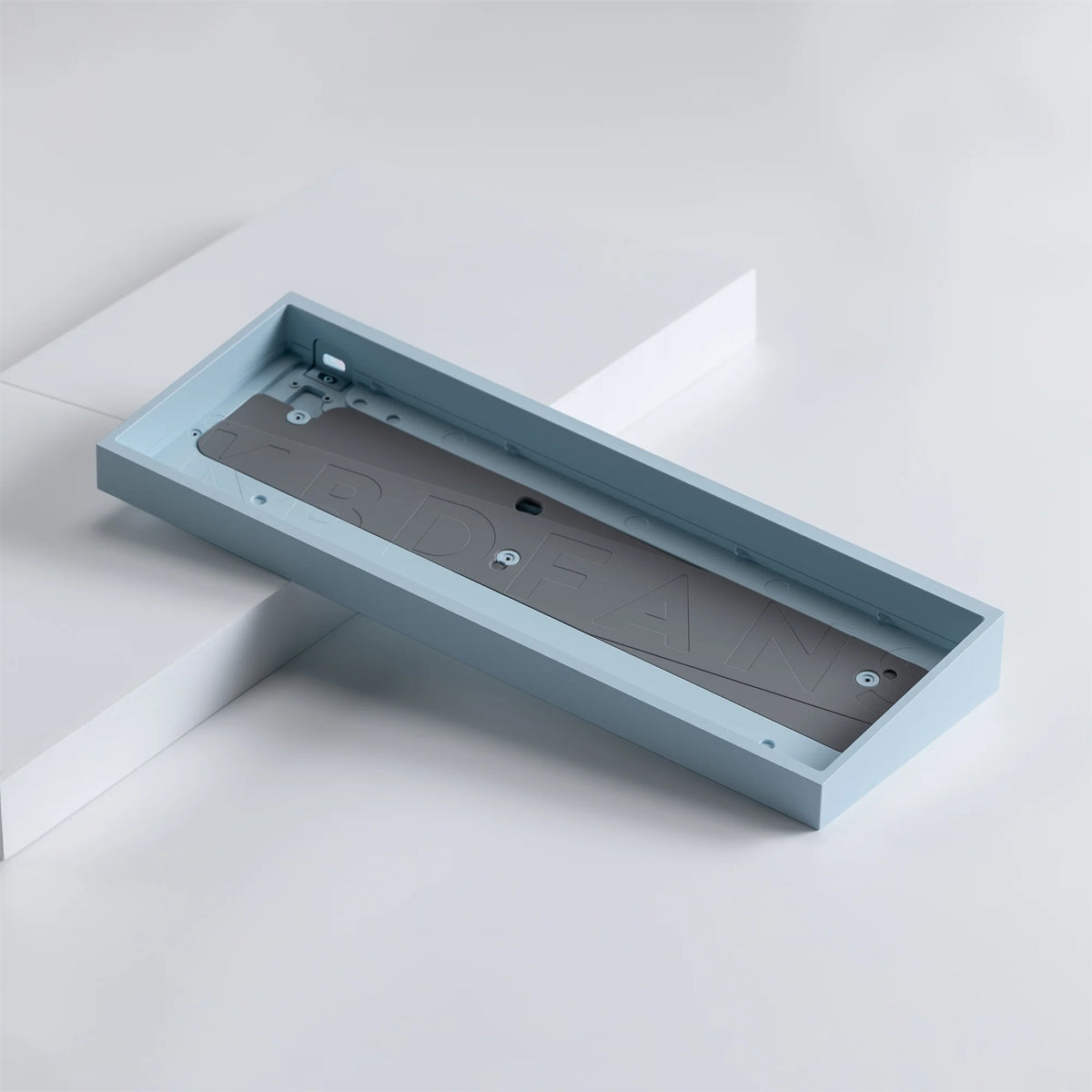

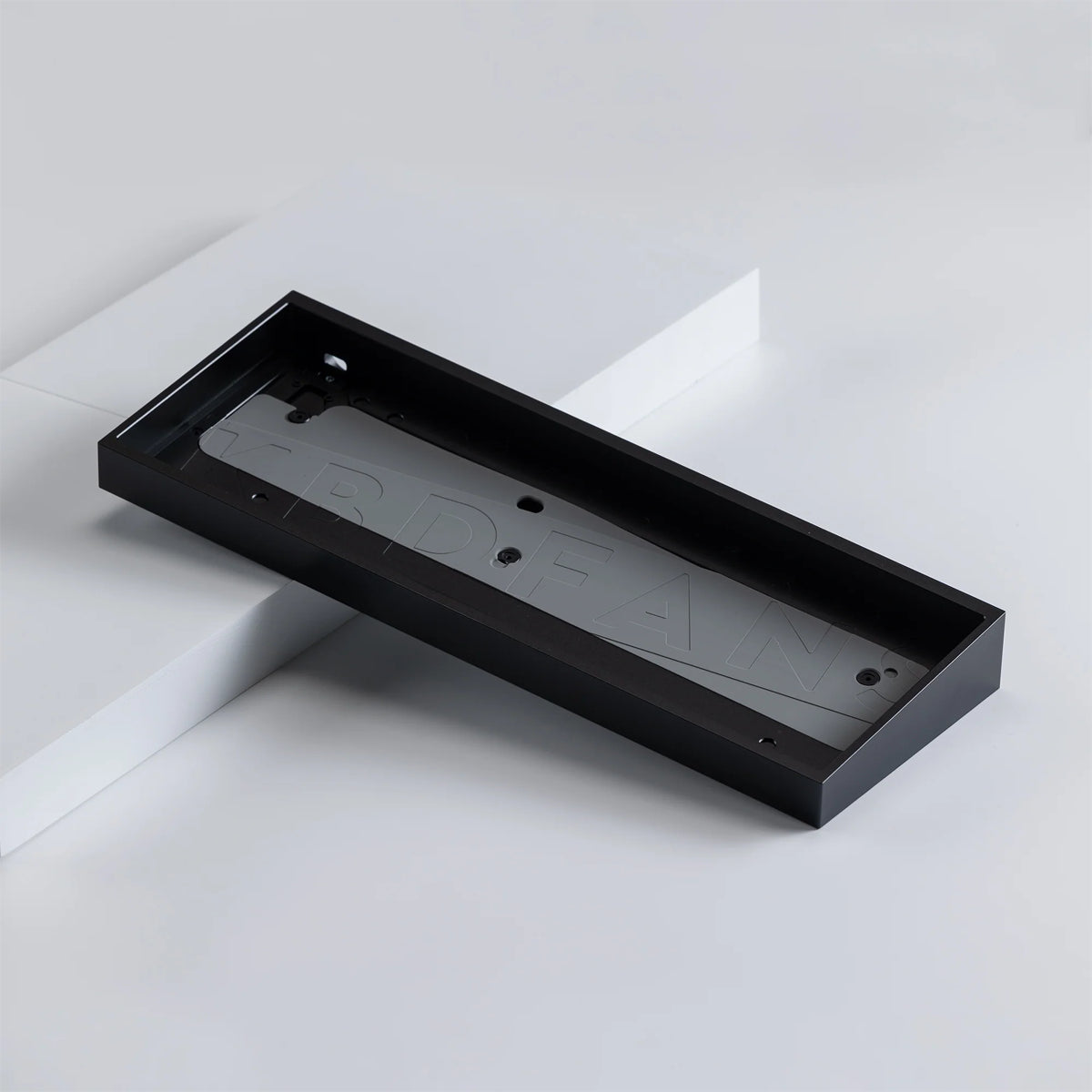

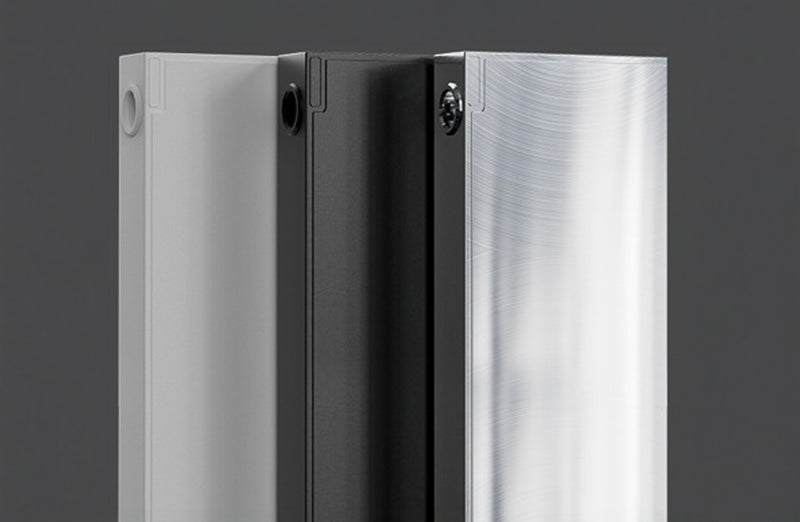

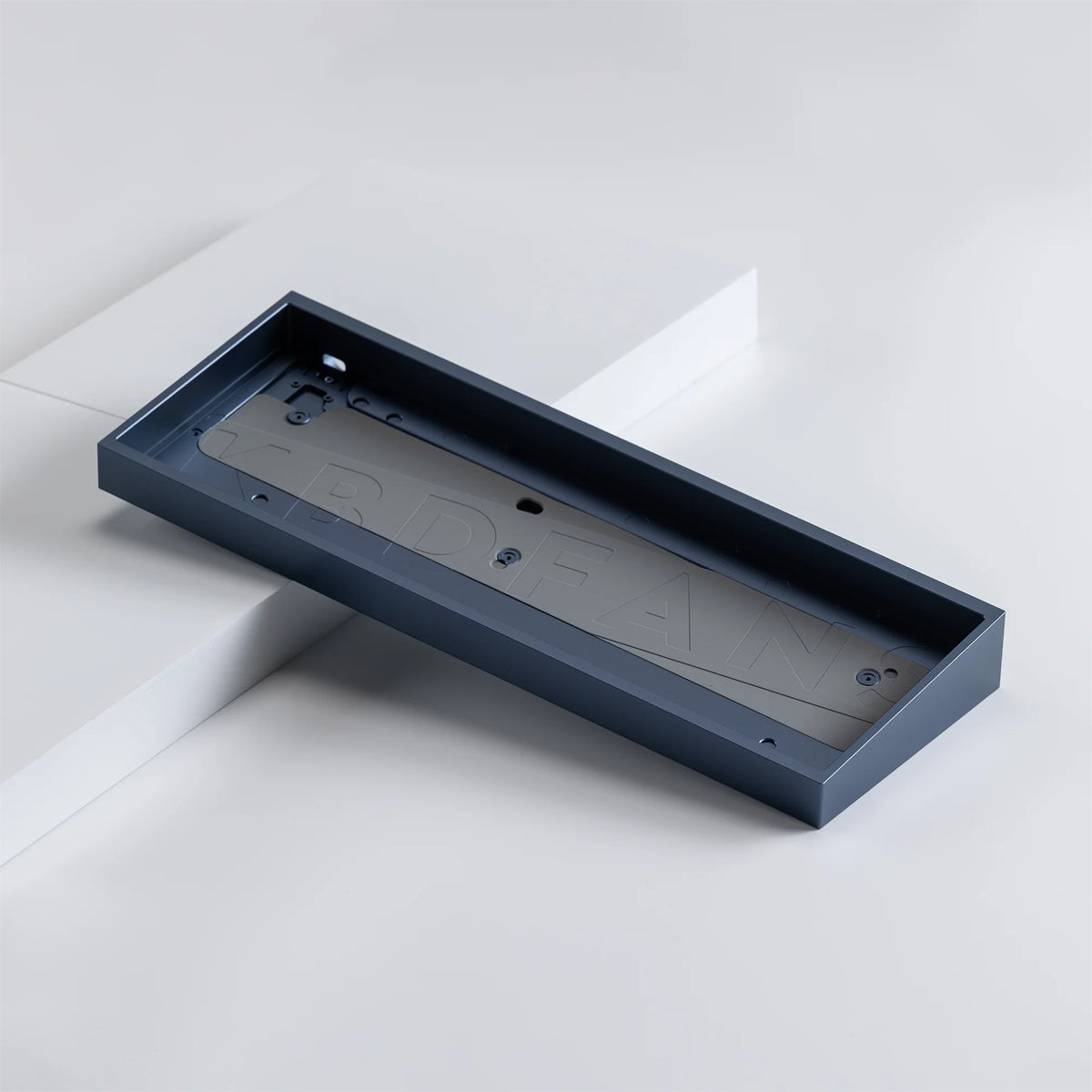

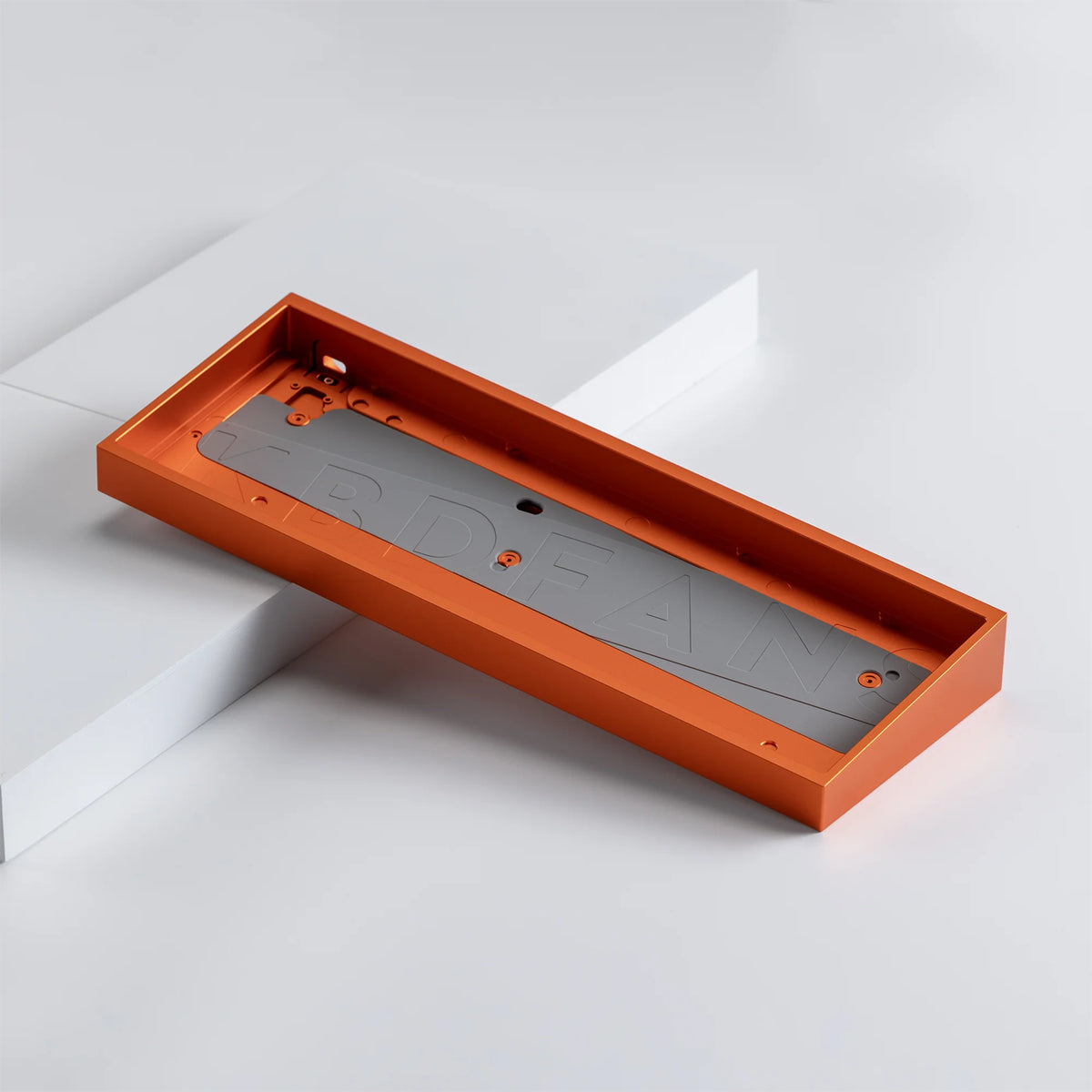

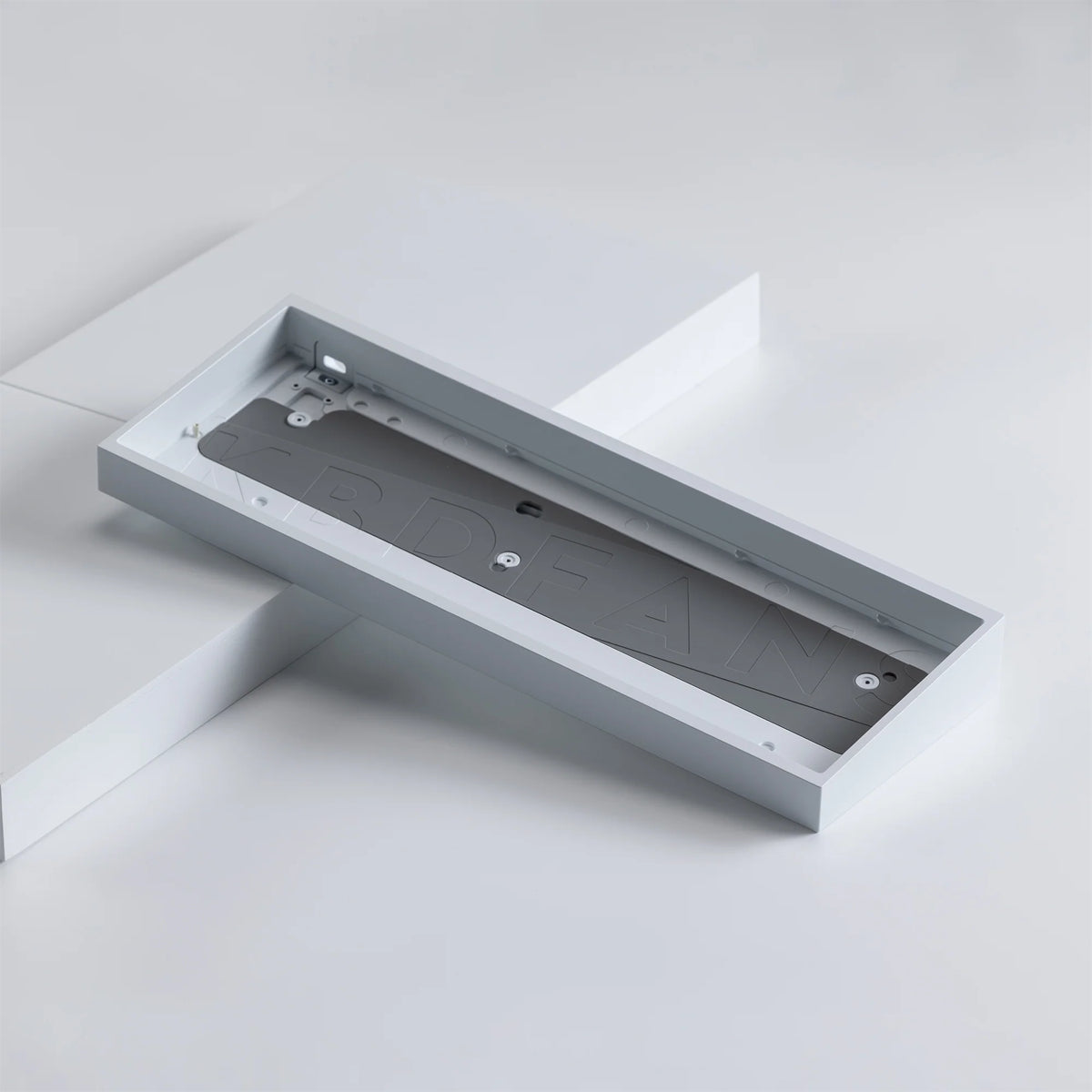

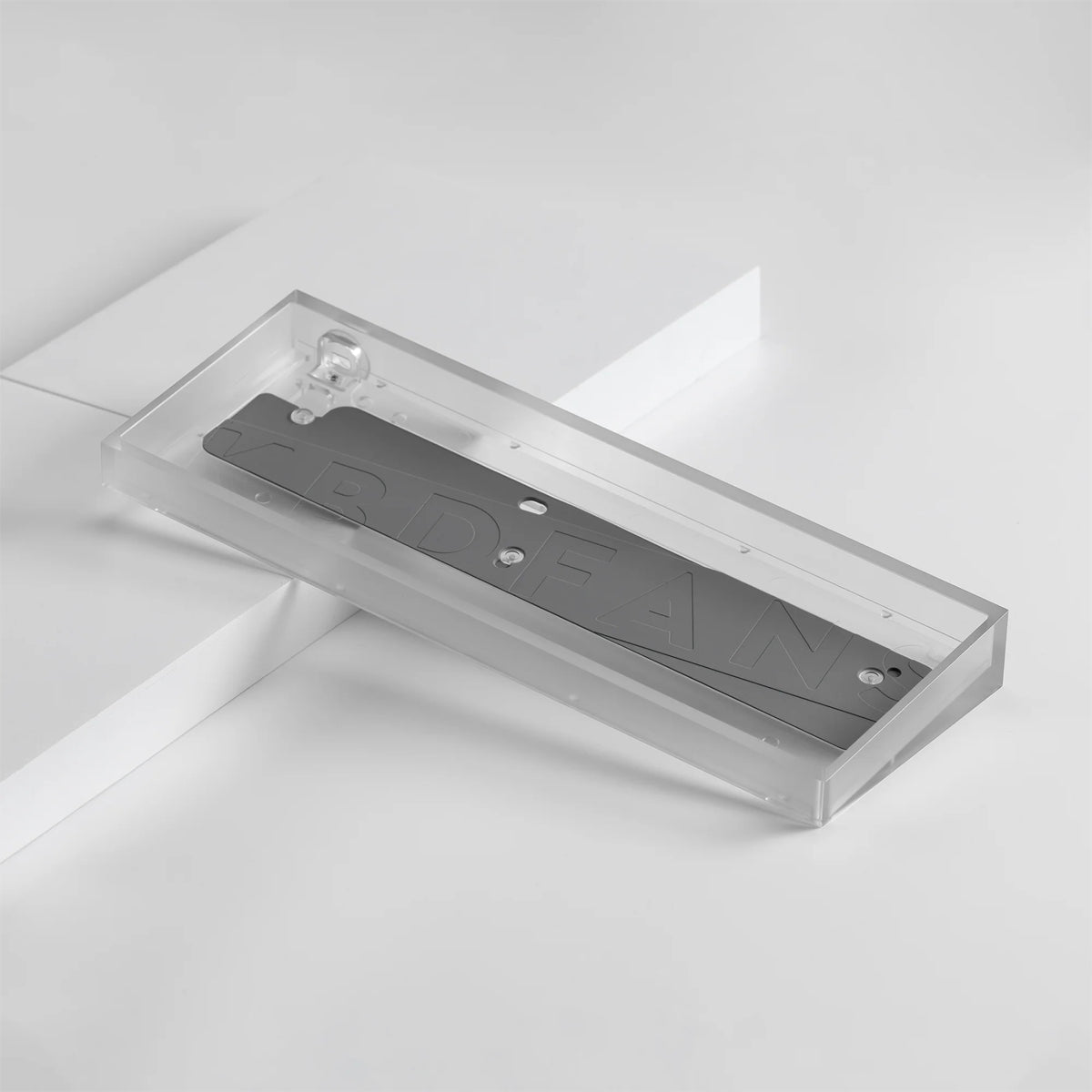

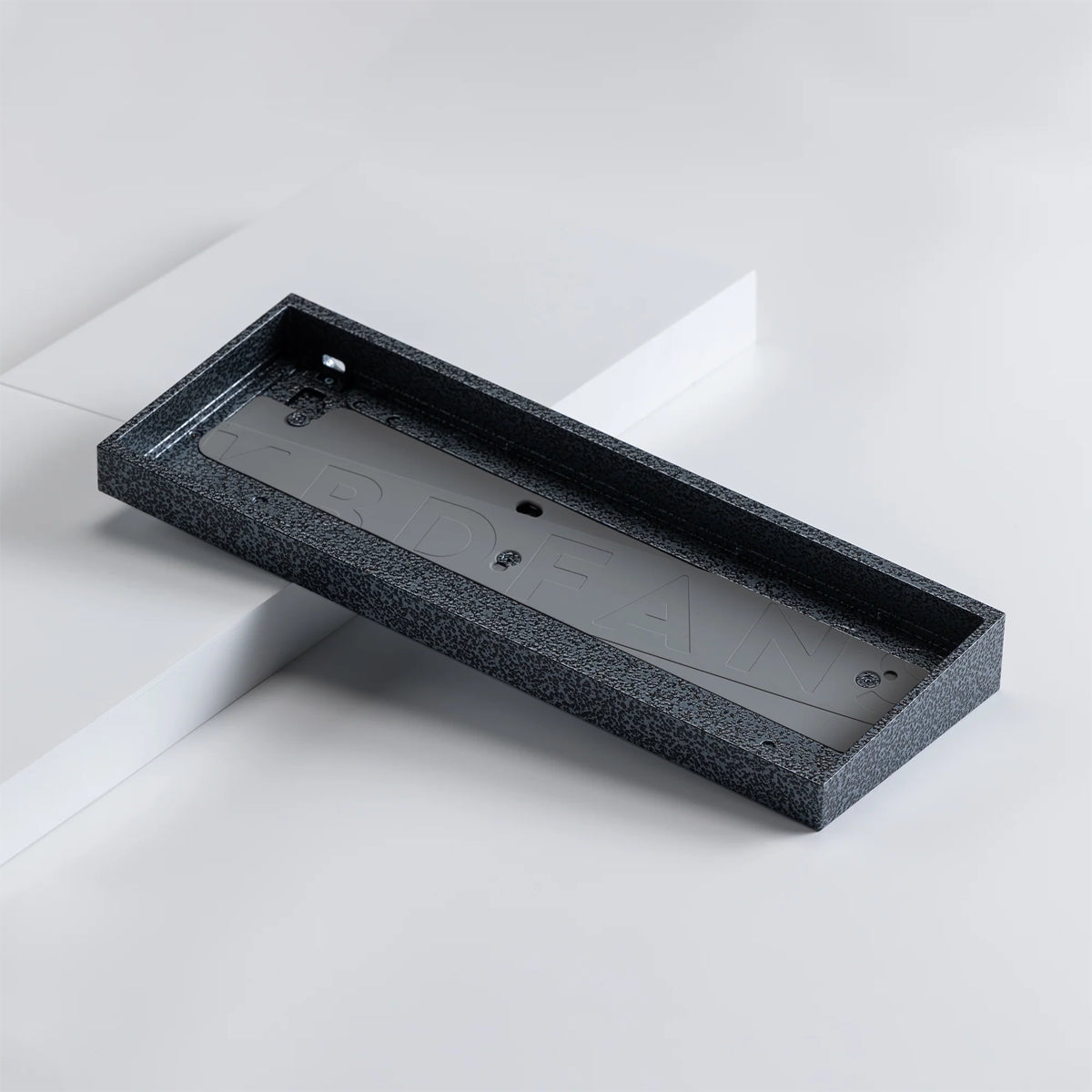

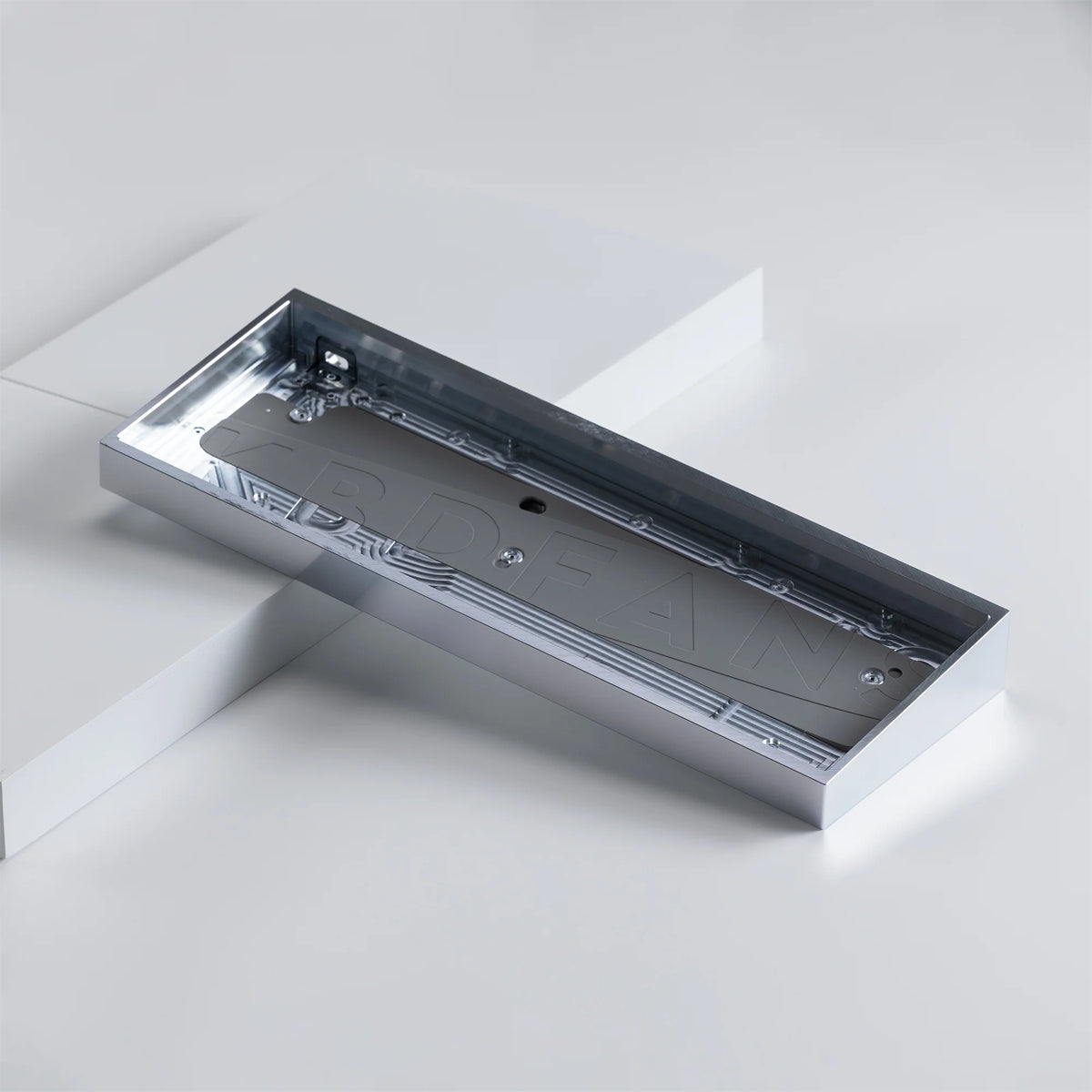

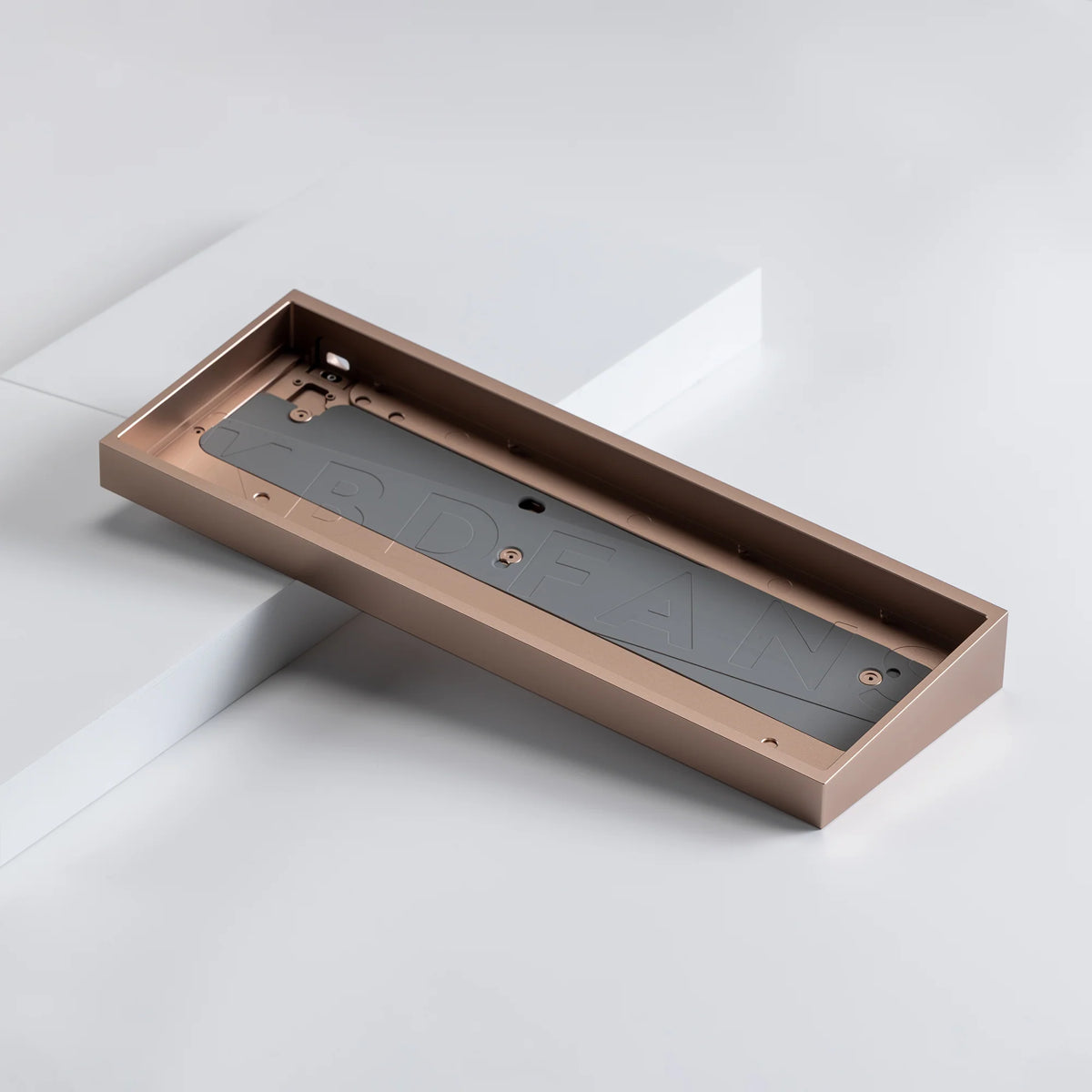

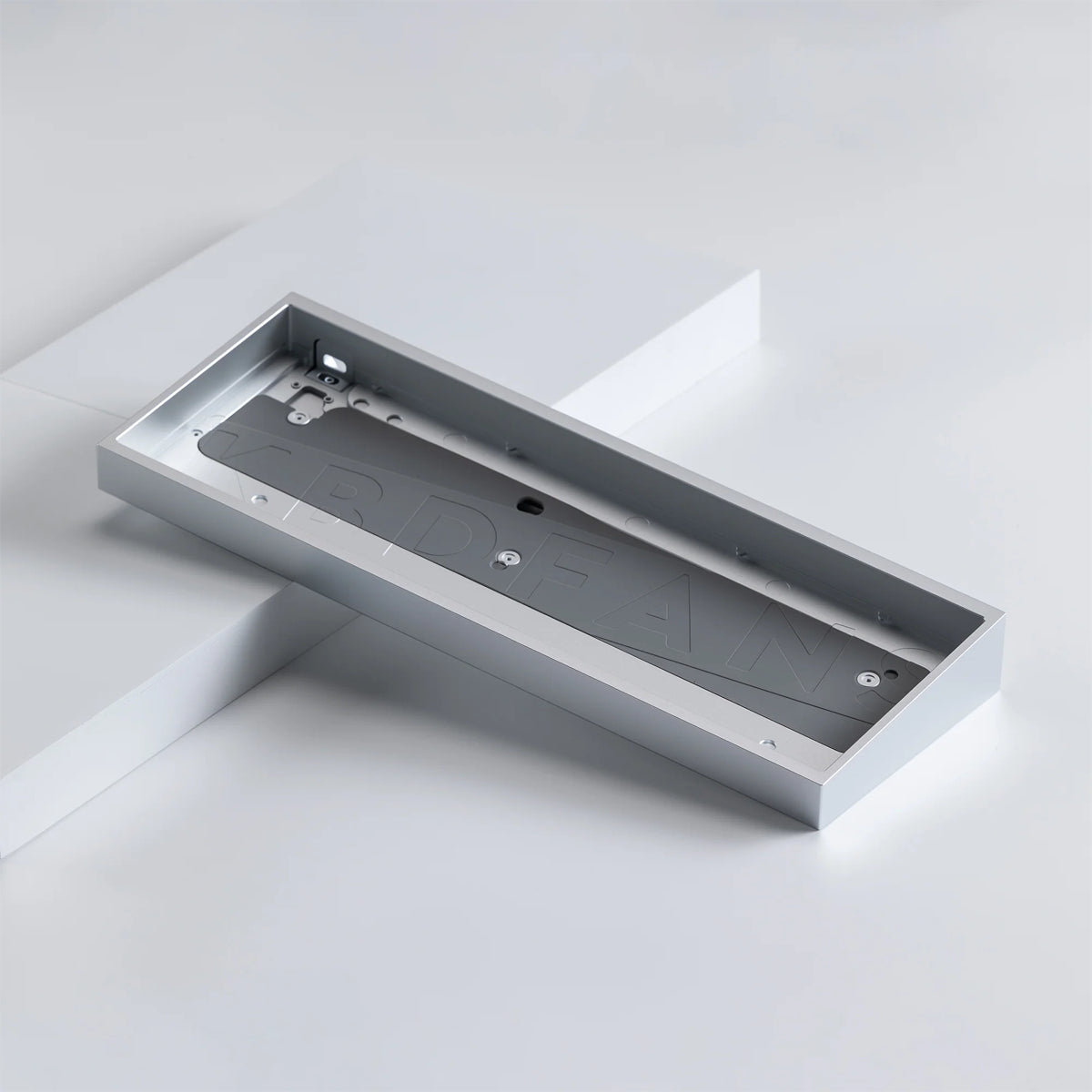

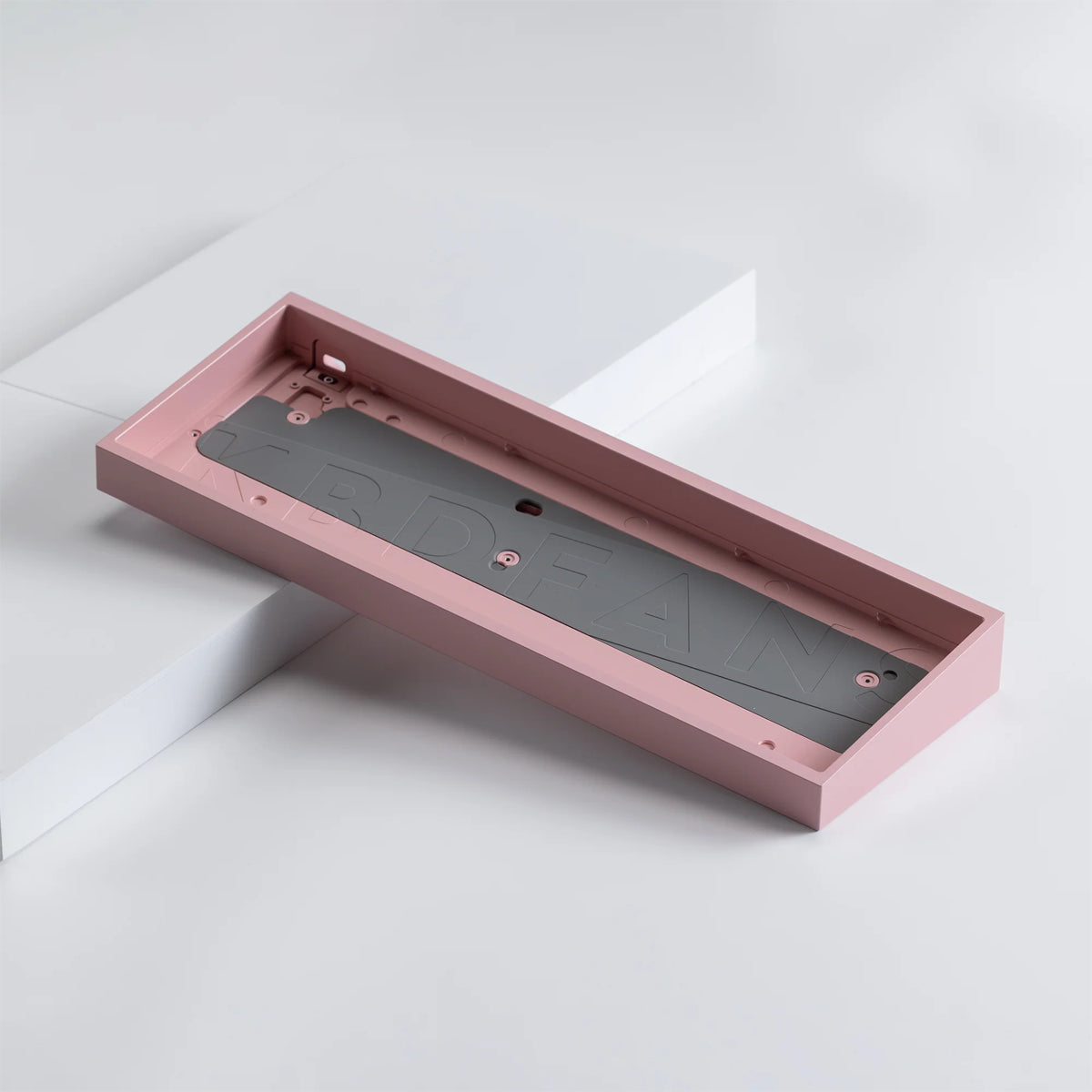

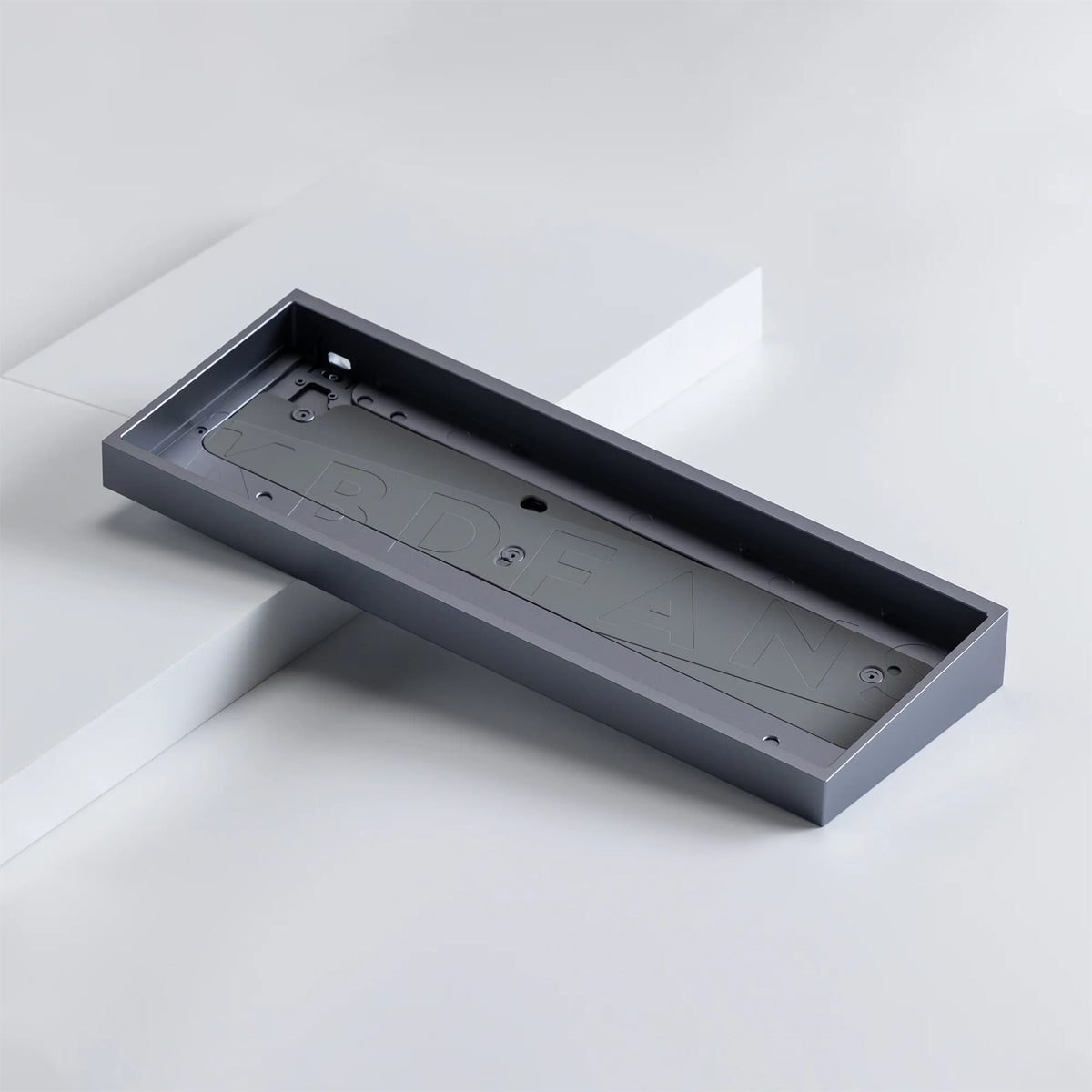

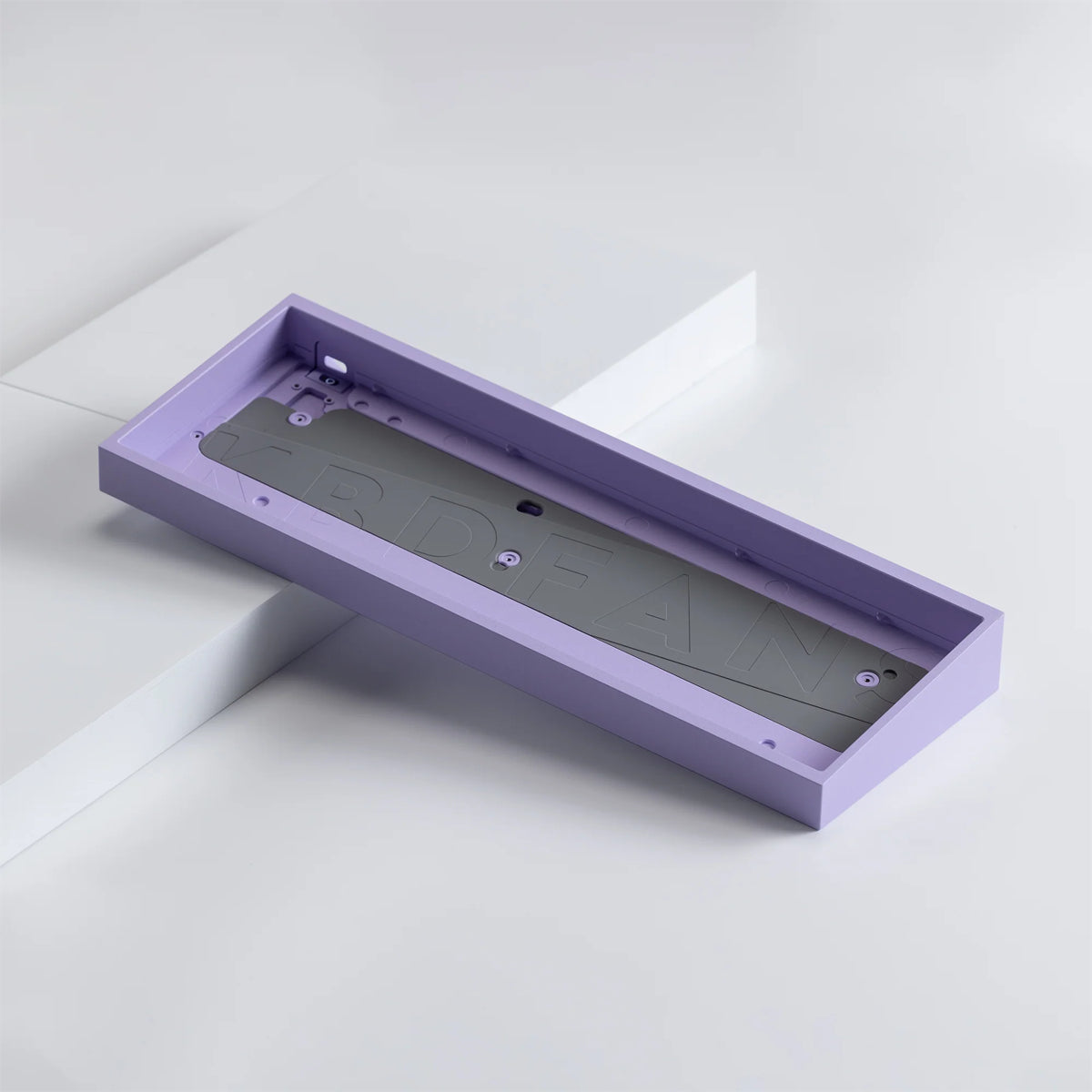

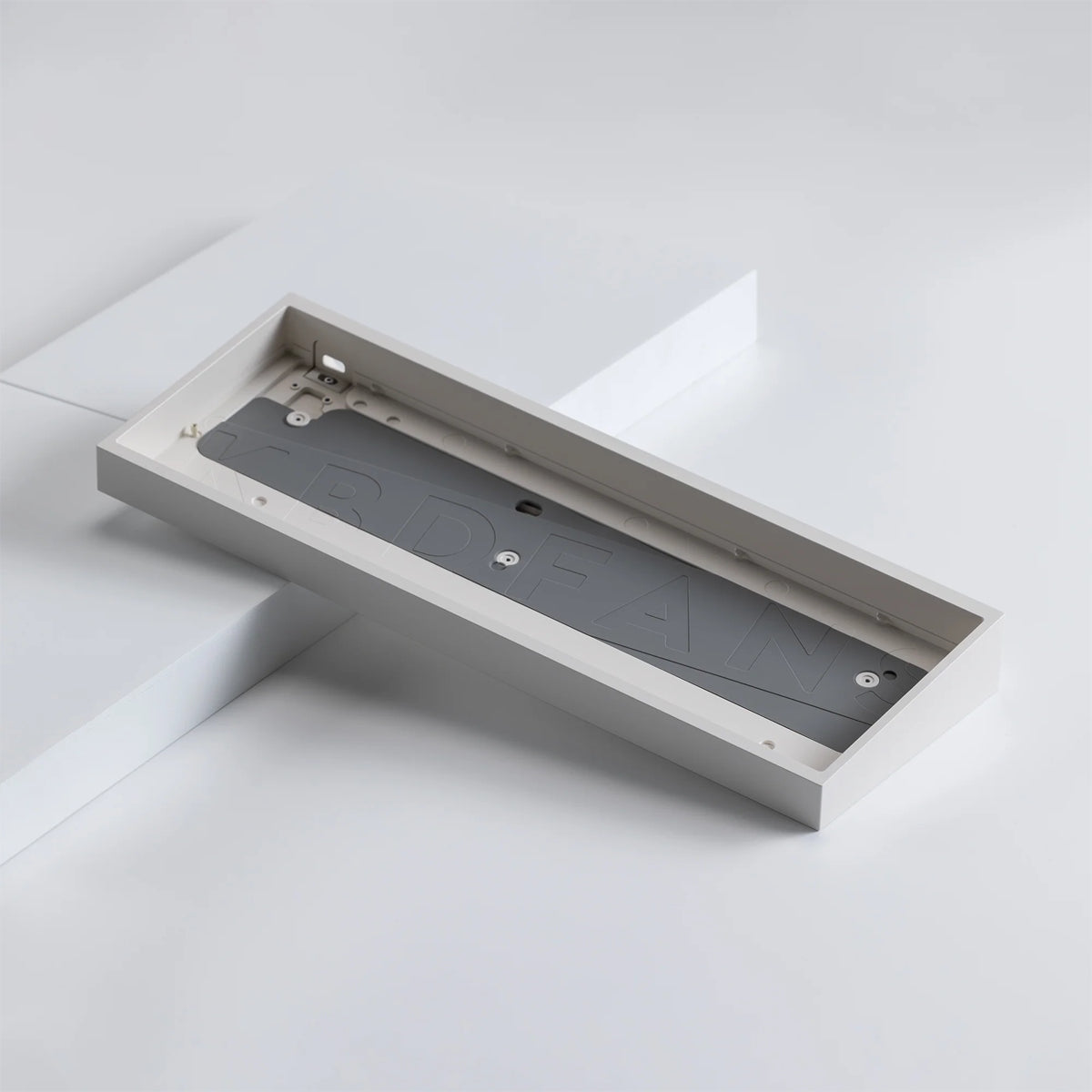

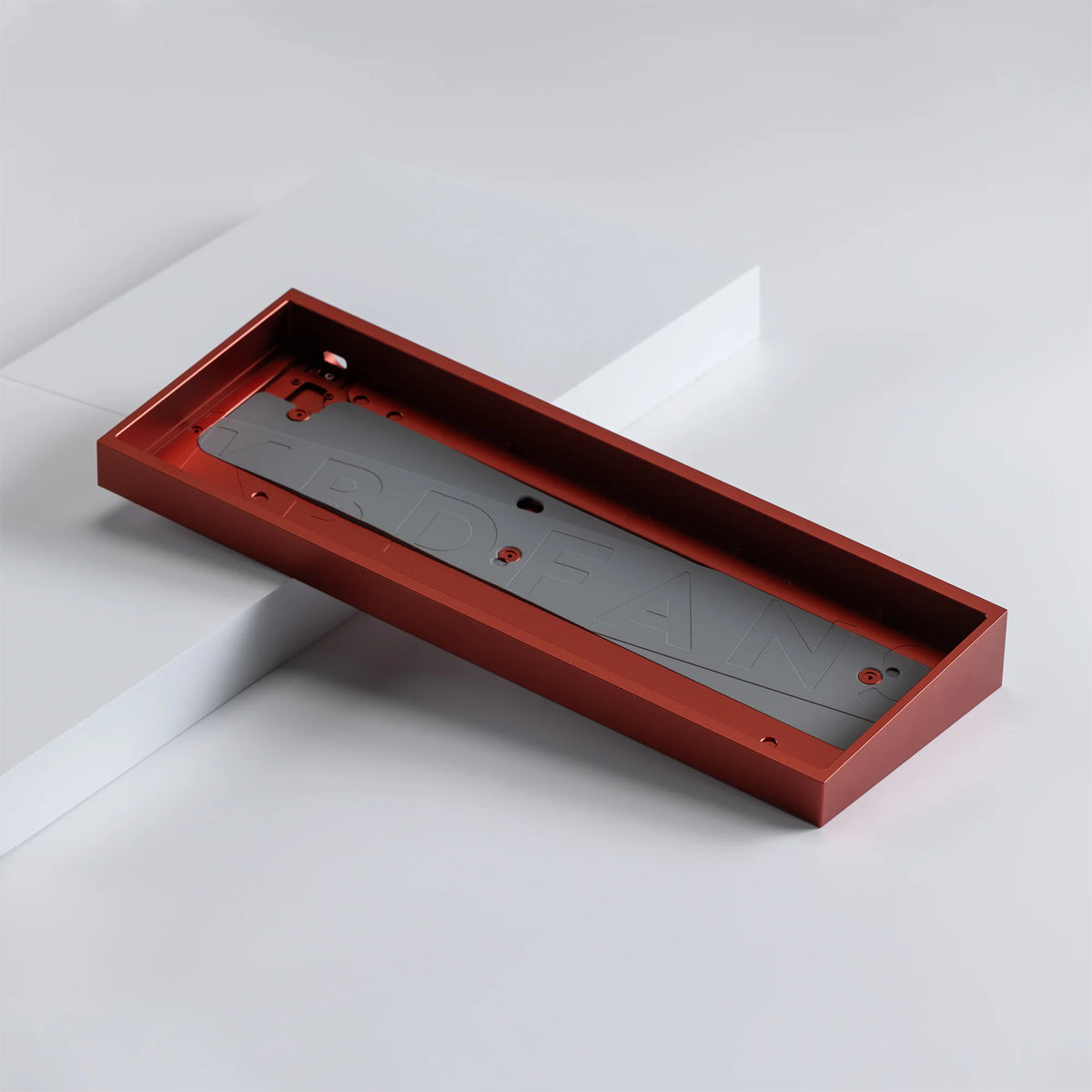

  • Case: Aluminum (Anodized, E-coat, Raw), Acrylic

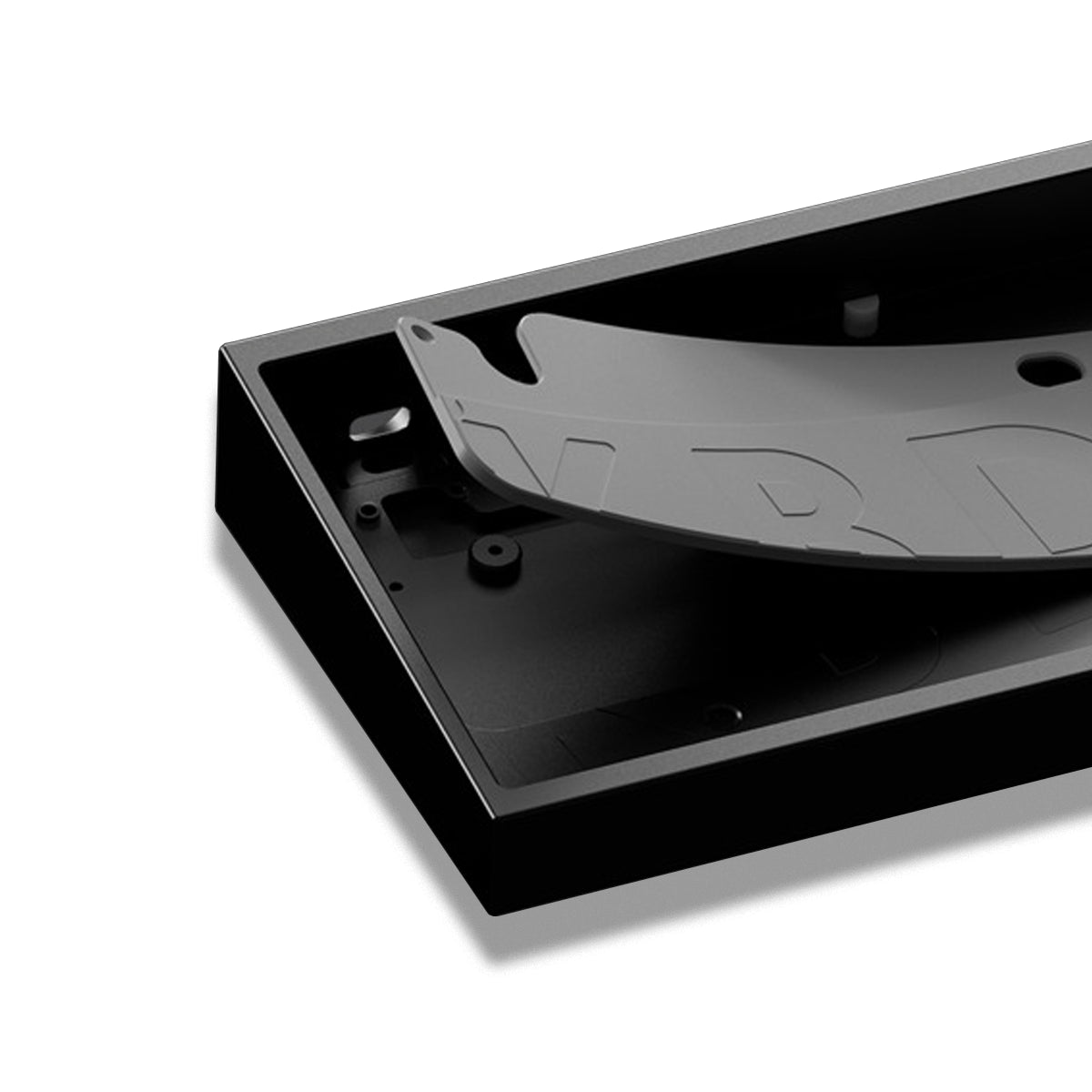

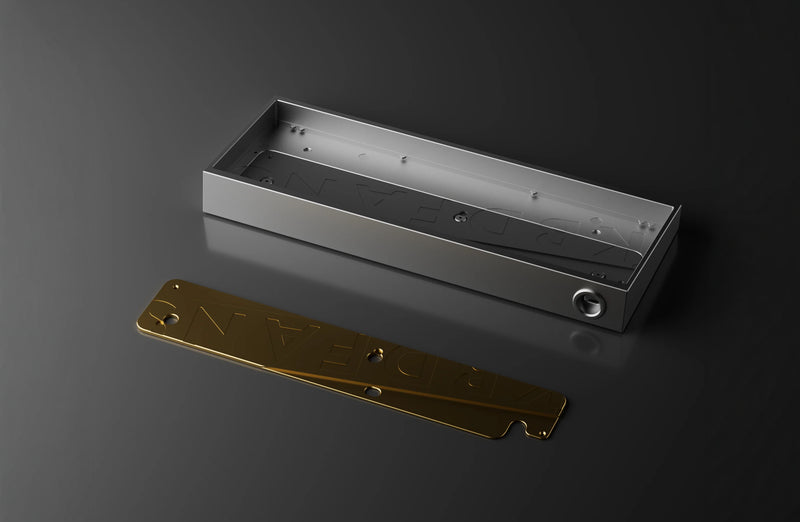

  • Weight Bar: Silicone Filling (37g), Brass (243g, Optional)
  • PCB Compatibility:
    • Standard GH60 Layouts
    • 60% Universal HE PCB's such as Wooting60HE (V1/V2), Rakka, etc.

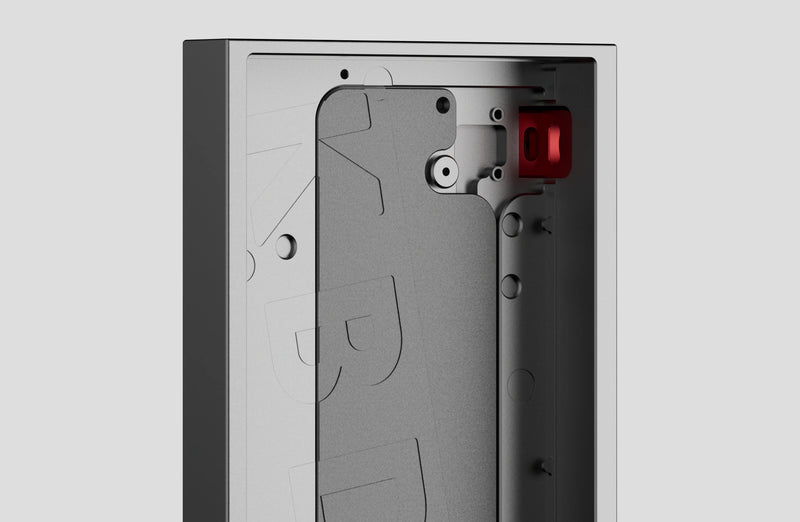

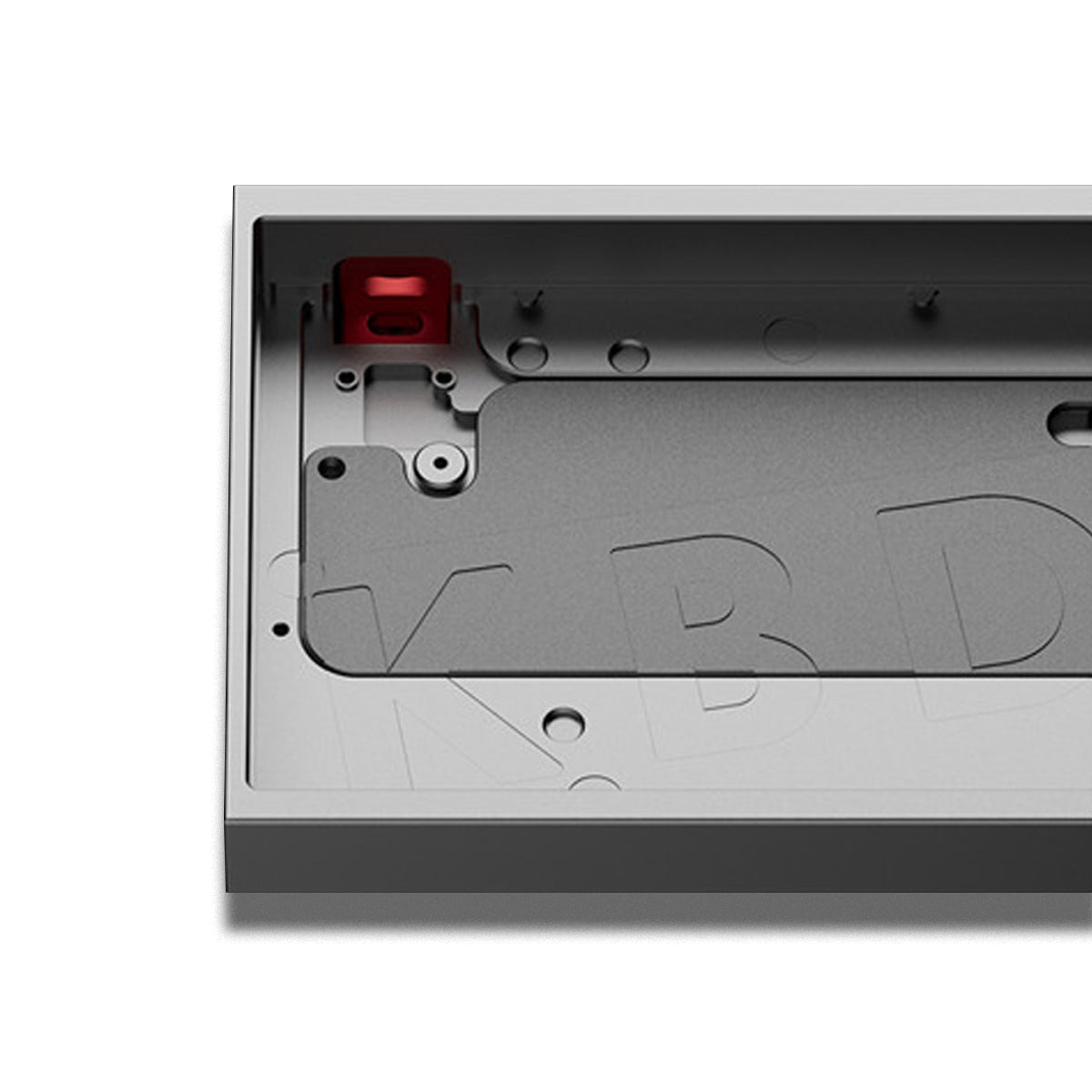

  • Adjustable USB Port: Allows more USB port compatibility with third-party PCBs
  • Daughterboard Support: Newly added mounting holes for daughterboards for compatibility with daughterboard PCBs
  • Optional Textured Bottom
  • Typing Angle: 7°
  • Dimensions: 294.8mm x 112.25 x 32.82mm
  • Front Height: 19.7mm
  • Effective Front Height: 23.6mm
  • Weight: Aluminum Case 740g / Acrylic Case 311g

Optional:

Includes:

  • 1 TOFU60 Redux V2 Case
  • 1 Silicone Filing
  • 1 Custom Silicone Ring
  • 8 Mini Silicone Gaskets
  • 8 Mid Silicone Gaskets
  • 1 1.5mm Poron Case Foam
  • 1 0.05mm PET Foam
  • 5 Brass Stand-offs
  • 4 Rubber Feet
  • 1 T6 Screwdriver
  • 1 Barebone Hook

Tofu60 Redux V2

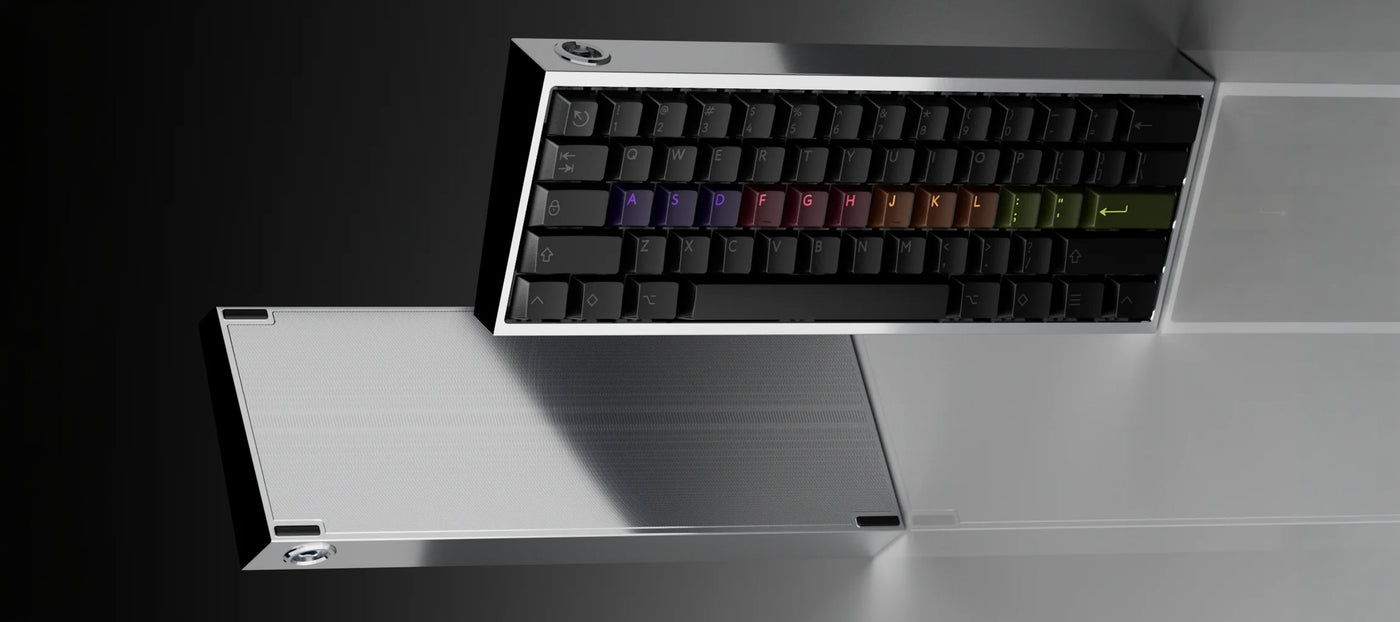

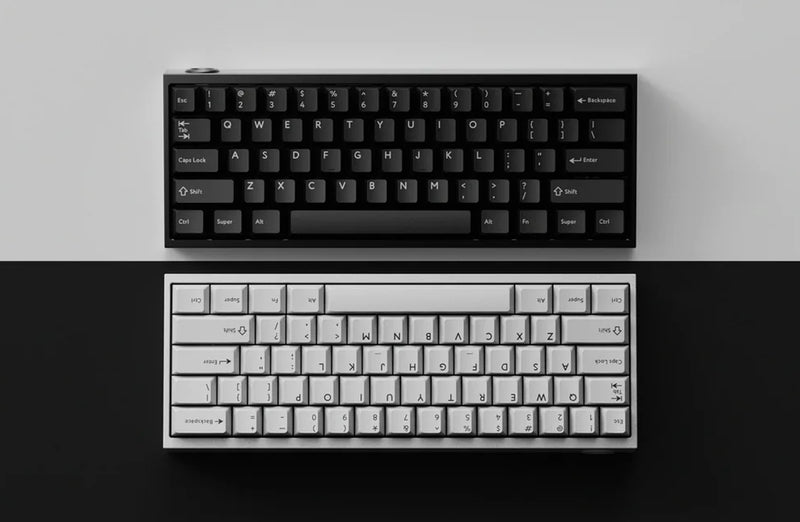

The Tofu60 Redux V2 builds on the foundation of V1 with a comprehensive structural upgrade while keeping the slim-bezel, minimalist design the TOFU family is known for as well as adding a new textured bottom case. Underneath, the V2 expands compatibility across standard GH60 layouts and the Hall Effect PCB ecosystem with deeper customizability throughout.

Three Mounting Styles

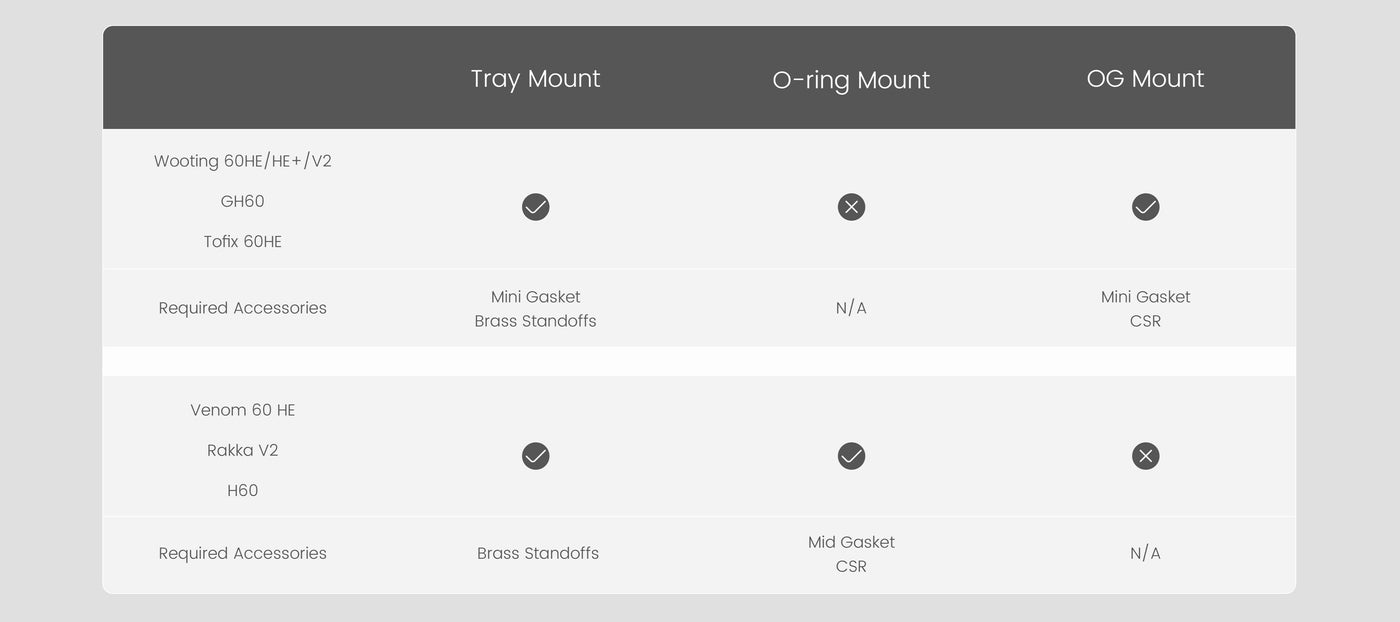

The Tofu60 Redux V2 supports three mounting configurations.

  • Tray Mount Standard GH60 compatible. PCB/plate secured via 5 brass standoffs. Mini Silicone Gaskets recommended for improved acoustics. (Required: Mini Gasket x8, Brass Standoff x5)

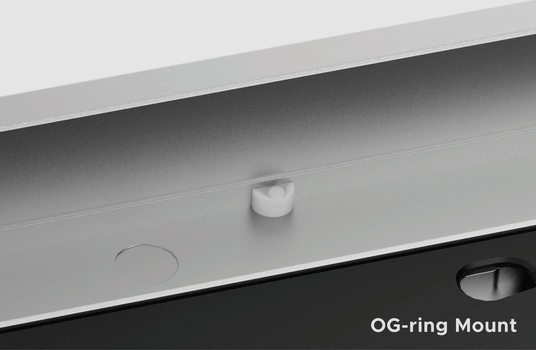

  • OG Mount (O-ring + Gasket) Fully screwless. Compatible with Wooting 60HE, GH60, Tofix, and standard rectangular PCBs. Custom Silicone Ring (CSR) suspends the assembly laterally while Mini Gaskets cushion vertical movement. Eliminates metallic ping. (Required: CSR x1, Mini Gasket x8)
  • O-ring Mount Fully screwless. Compatible with Venom 60HE, Rakka V2, H60, and other O-ring compatible PCBs. Custom Silicone Ring (CSR) supports screw-in stabilizers with no interference, available in multiple hardness options. (Required: CSR x1, Mid Gasket x8)

PCB

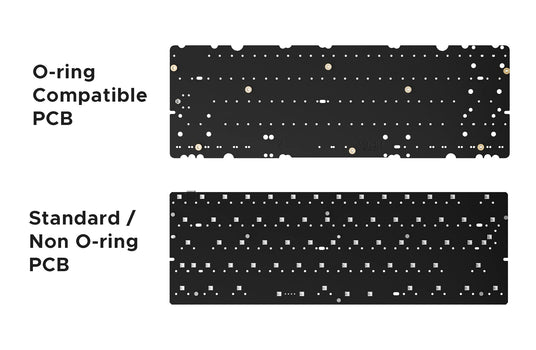

The updated PCB of the Tofu60 Redux v2 now supports standard GH60 layout PCBs and is deeply compatible with the magnetic switch (HE) PCB ecosystem, such as Wooting 60HE (V1/V2), Rakka, etc. Find the right one for you based on versions that optimize your preferred mounting styles;

O-ring Compatible PCB: supports Tray mount and O-ring mount.
Standard PCB/Non- O-ring PCB: supports Tray mount and OG mount

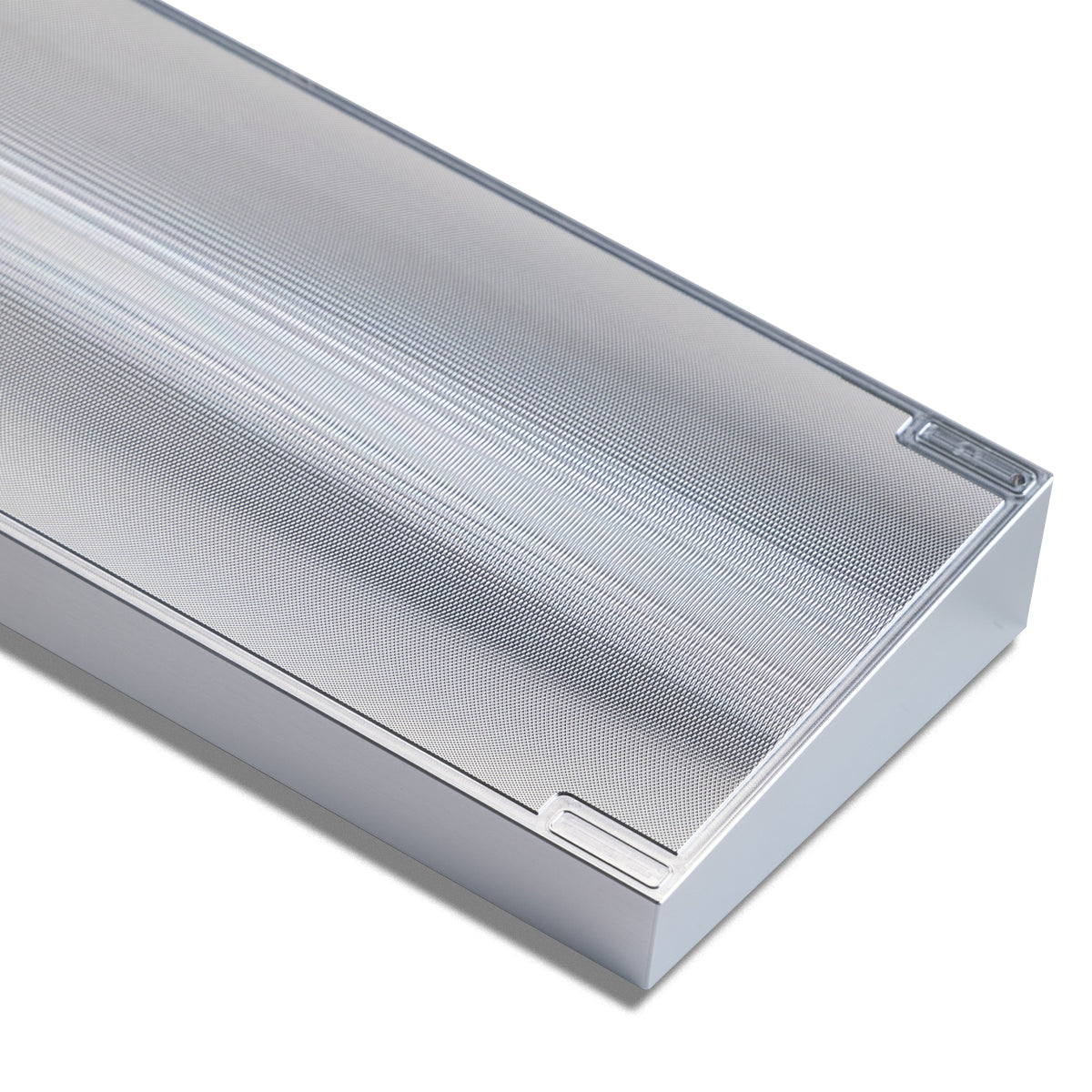

New Bottom Case

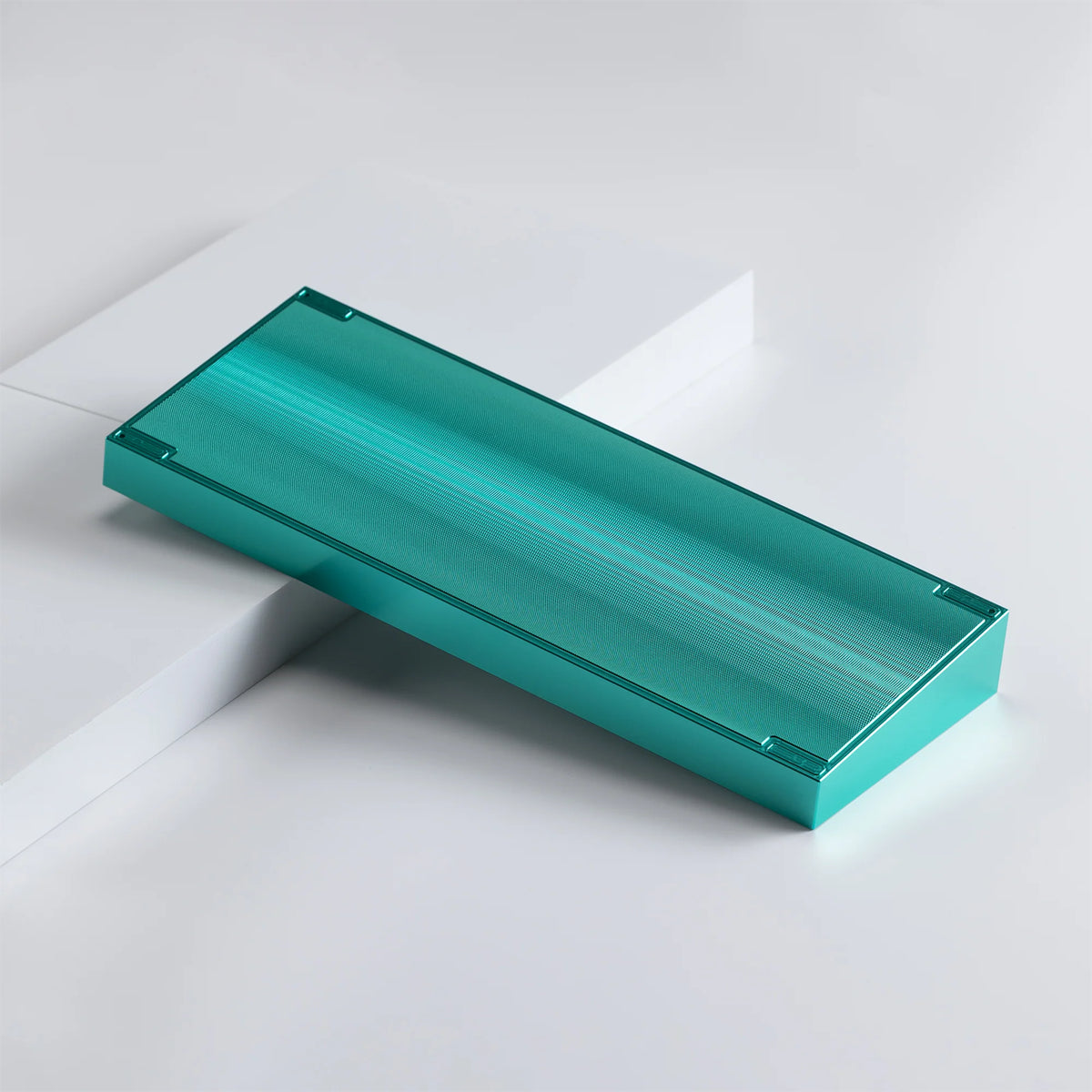

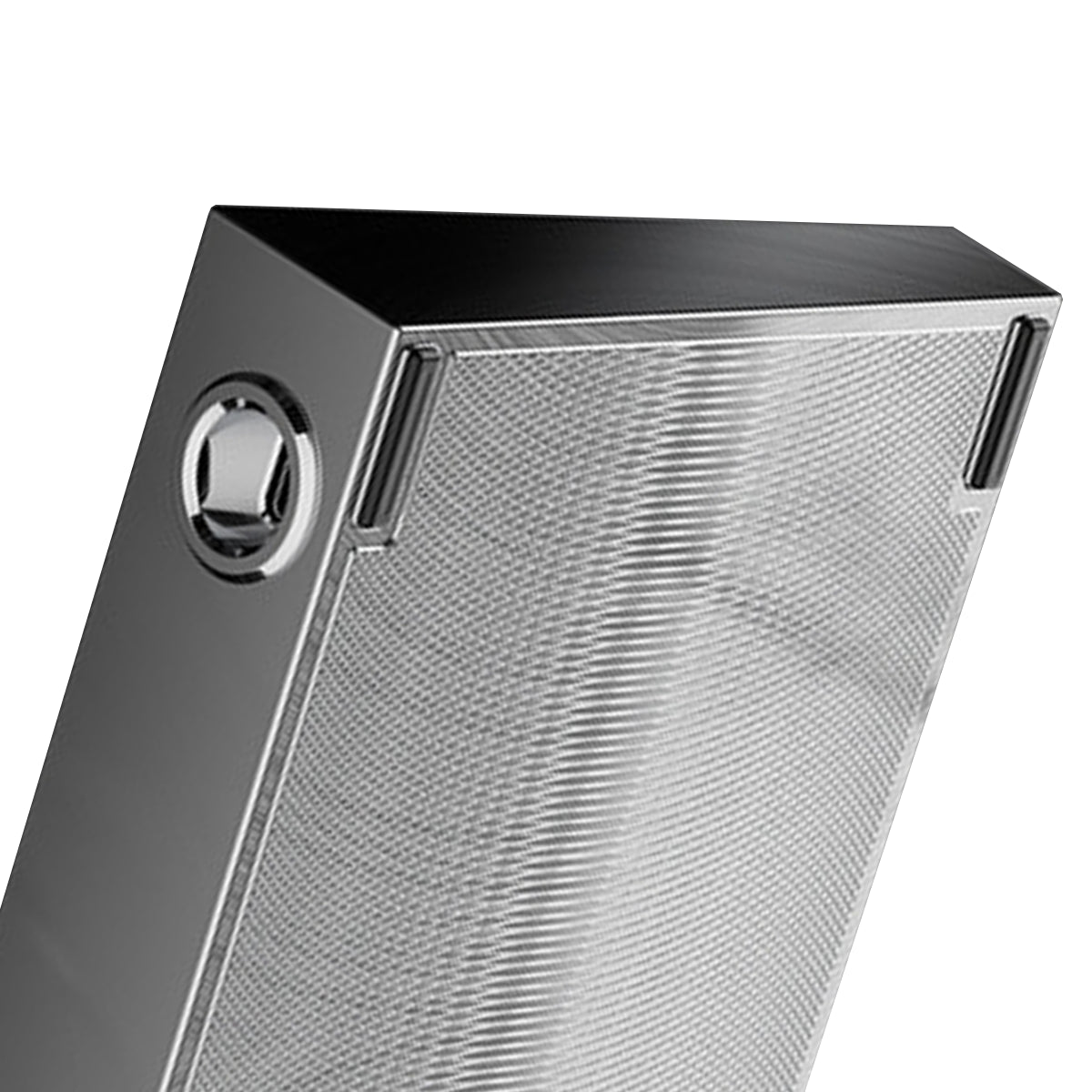

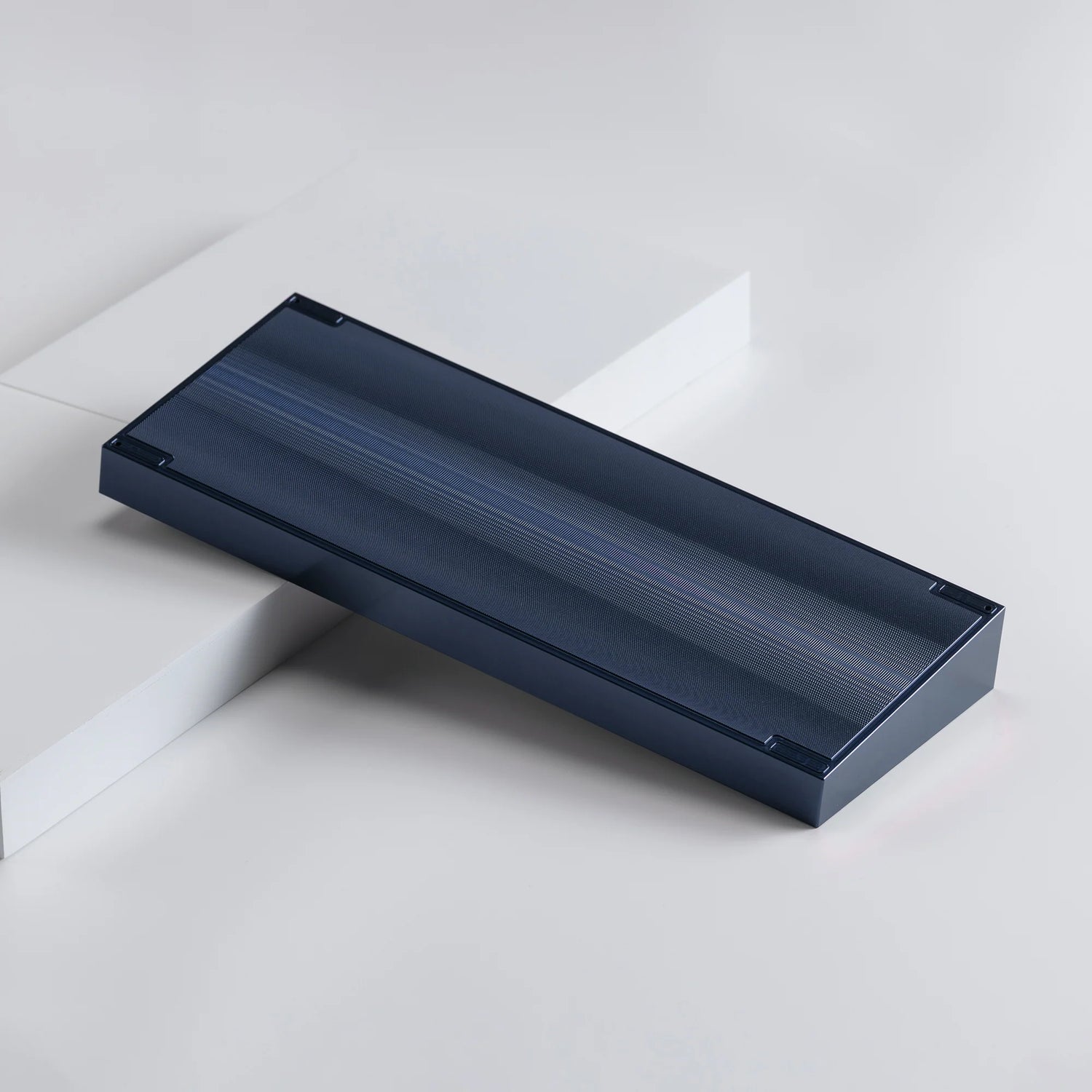

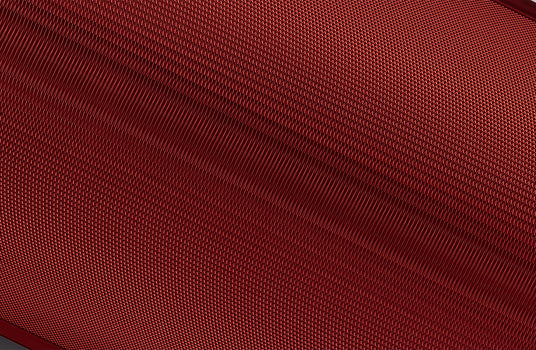

Where the V1 featured a smooth and minimal take on the bottom case, the V2 adds an optional CNC machined texture that elevates the overall look and feel of they case. This version is available with the following colors:

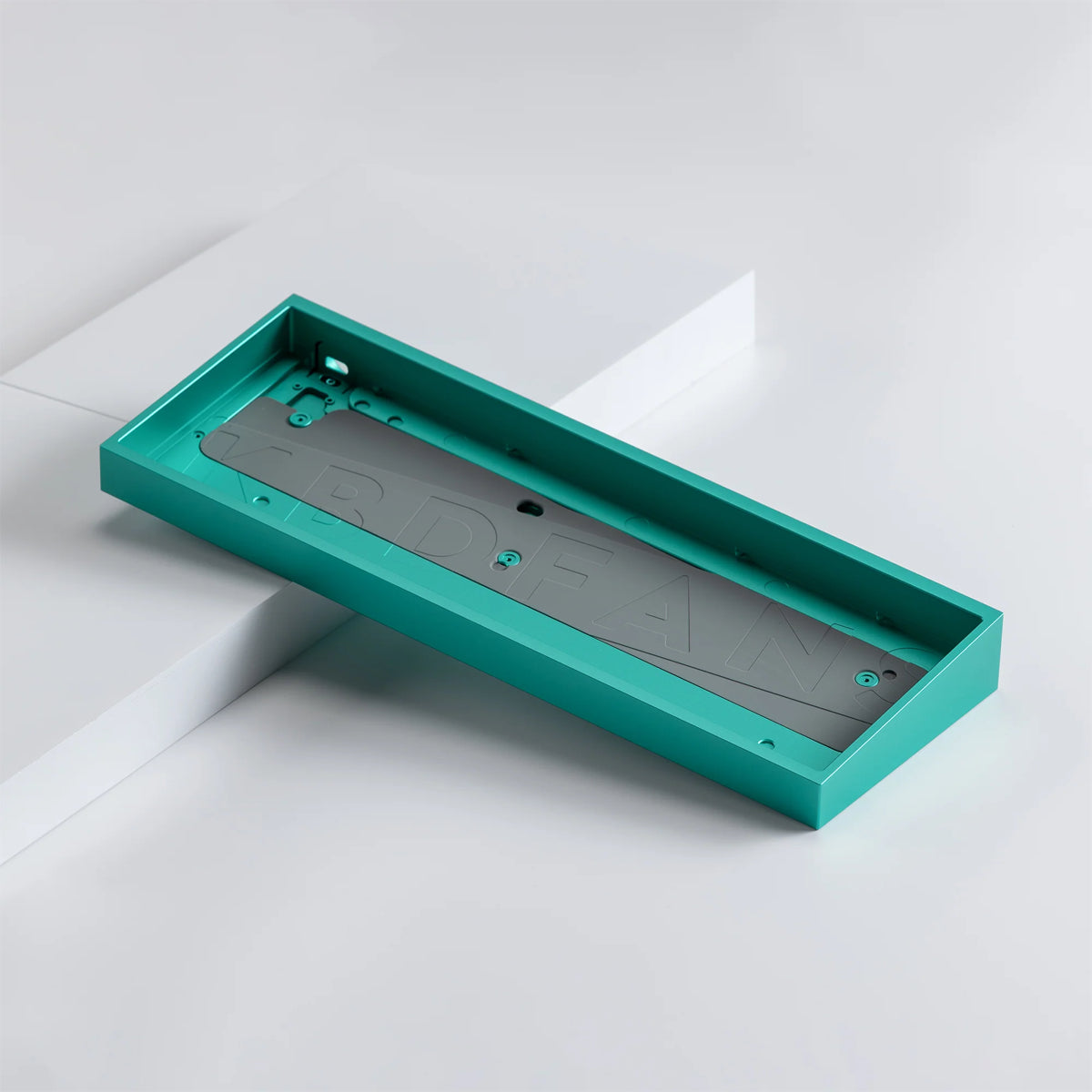

Silver | Burgundy | Dark Purple | Dark Blue | Tiffany
